Treatment and recover of waste water containing acetone |
|
Type：FX-201.1, hydrophobic silica zeolite adsorbent
Unit of application in：（Sinopec Shanghai Gao-Qiao Petro-chemical Corp.）
Background: In some perto-chemical plant, the waste water containing acetone is usually treated with a process by ail sweeping, the efficiency of which is low and resulting in second contamination. In new process using FX-201.1 adsorbent, the acetone contained in waste water can be effetely removed and recovered.
|
|
1） Major process parameters
Adsorption：
20～32℃,space velocity 2.5～3.0, 14～16g waste water/g adsorbent,动Dynamic adsorption capacity 60 mg acetone/g adsorbent.
Desorption：
180℃，5 hr，N2 as carrying gas.
Quality level:
Acetone content in treated waste water < 50ppm；De-acetone efficiency 98％; Concentration of acetone in adsorption solution 8.0％.
2）Adsorption of acetone, phenol and water
|
|
Acetone |
phenol |
water |
|
Tem.（℃） |
20 |
50 |
26 |
|
Adsorption（g/100 g adsorbent） |
10.8 |
11.2 |
0.6 |

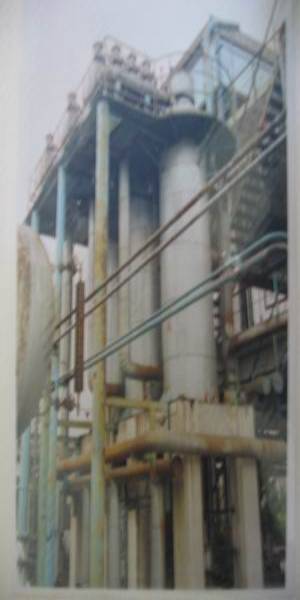

3）Test apparatuses |
|
|
上海高桥石化化工厂，复旦大学。“疏水硅沸石处理含酮废水与回收丙酮”，科学技术成果评审证书，编号(95)沪高科鉴字06号 。 点击下载 【2】 上海高桥石化化工厂，“疏水硅沸石处理含酮废水与回收丙酮”课题小试报告。 点击下载 |
|
|
